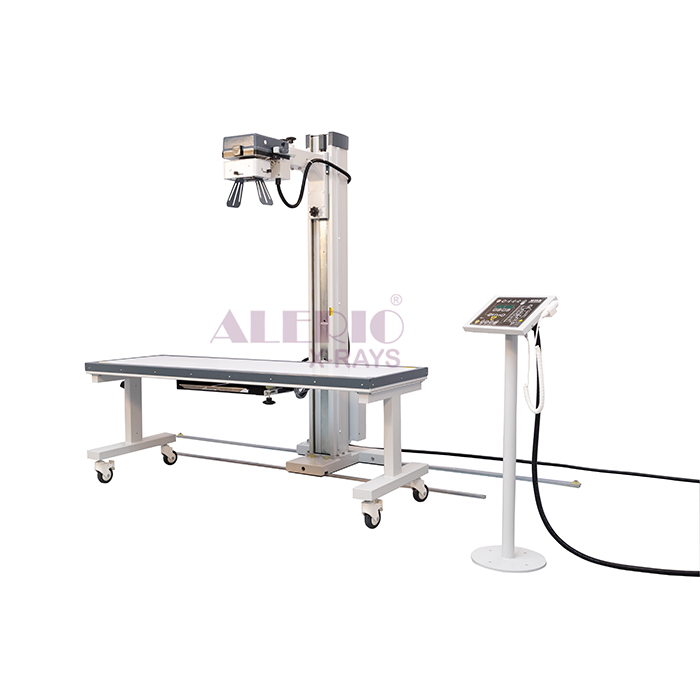

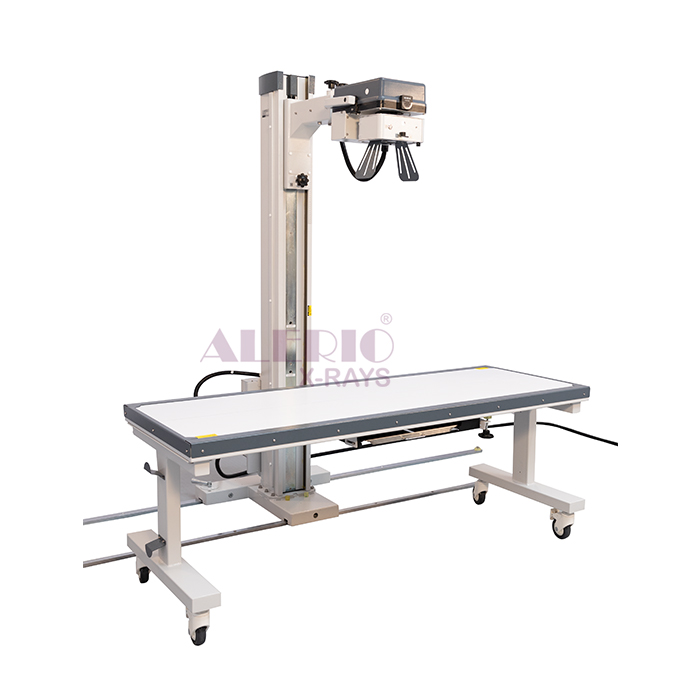

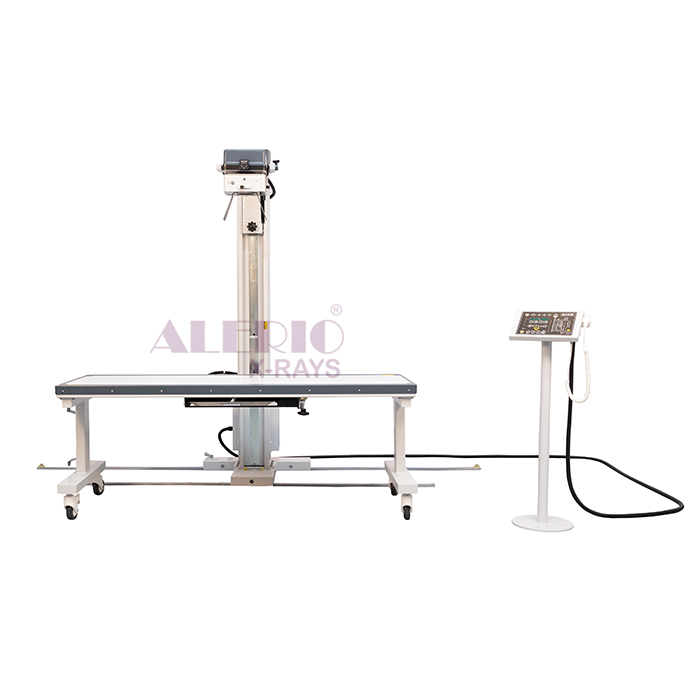

5kW Fixed X-Ray Maestro 5000
ALERIO Meastro 5000 is an economical, and compact fixed room x-ray machine for general radiography procedures. It uses High Frequency DC Technology. The X-Ray Dose Rate is consistent and intense. Enabling good images at lower exposure settings. The equipment can be powered from a standard single phase power outlet. The small size focal spot results in sharper images. ALERIO Maestro X-Ray is Made in India and comes with warranty and support. It conforms to AERB, BIS and ISO standards.
ALERIO Smart
General Specification
| Generator Type | HF Inverter 200kHz, DC Output |
| Tube kV | 40-110kV, 1kV Steps |
| Tubs mAs | 01-250mAs |
| Max Tube mA | 120mA |
| Peak Power | 5000W |
| Exposure Time | 0.01s-5s Digital |
| Focal Spot | 1.8mm IEC |
| Leakage Radiation | ❯ 1mGy/hr |
| SSd (In-Build) | Minimum 300 mm |
| Mains Voltage | 180V - 260V AC |
| Line Current | 16A at 230V |
| Total Filtration | ❯ 2.5 mm AI Eq |
| X-Ray Controls | Trigger at Hand Switch |
| Tube Column | Manual Counter Balanced |
| Table Top | 1.2mm AI Eq |
| Control Panel | Digital Dispaly, Anatomical Pre-Sets |
