4.2kW Mobile X-Ray Smart 4200

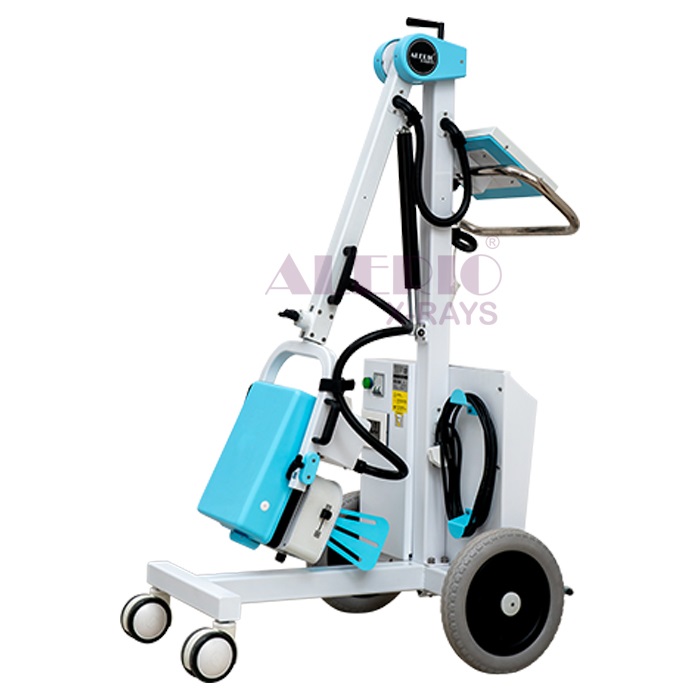

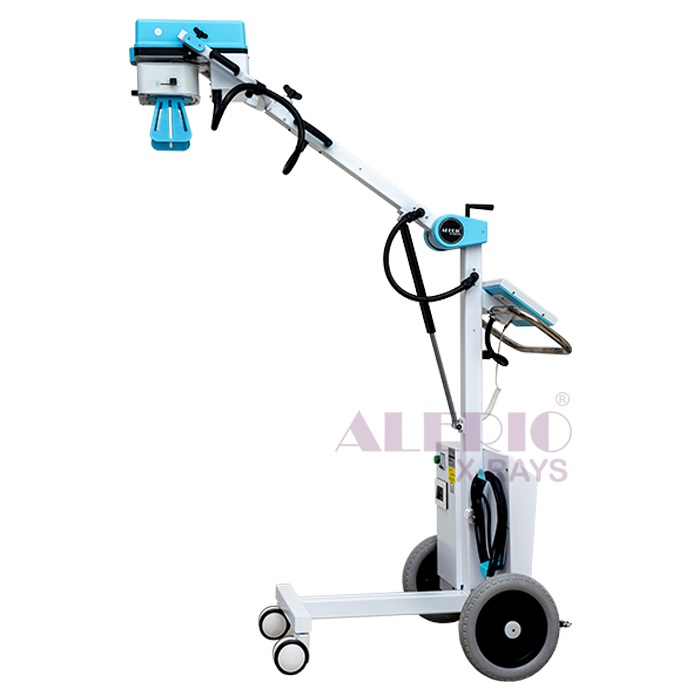

ALERIO Smart 2800 is a compact yet powerful Mobile X-Ray Machine for general radiographic procedures. It uses advanced High Frequency DC Output x-ray generation technology. The overall size and weight of the equipment is low, making it ideal for applications with space constraints. The DC output enables good x-ray imaging at a lower exposure setting. The equipment can be powered from a standard power outlet. It has an in-built voltage stabilizer to counter mains voltage variations. The equipment has a selectable second focus for finer low dose imaging.
ALERIO Smart is Designed and Made in India by an ISO 13485 certified company. It comes with warranty and support. The unit is BIS and AERB regulatory certified.
Typical Usage Enviroinment
- Clinics, Laboratories & Hospitals
- ER & Patient Bedside X-Ray
- Remote Location & Home Visits
- Secondary to Fixed X-Ray
Through expert guidance, we focus on refining your vision, enhancing operations, and unlocking new opportunities for growth. With a collaborative approach, we empower you to make confident decisions and build a sustainable, thriving business.

ALERIO Smart
Our business coaching process is designed to provide structured, yet flexible, support tailored to your specific goals. We begin with an in-depth consultation to understand your business’s current challenges.


General Specification
Model | ALERIO Smart 4200 |
Generator Type | High Frequency DC Output |
Output kV | 40kV-120kV in steps of 1kV |
Output mA | 100mA maximum |
Output Power | 4.2 kW (100kV, 42mA) |
mAs Range | 0.1-250mAs |
Exposure Time | 0.01s-5.0s |
Focal Spot | 0.6mm / 1.8mm IEC |
Leakage Radiation | ❯ 1mGy in one hour / (100mR/hr) |
Collimator | Manual Collimator with LED bulb |
Dimensions Footprint | 850mm x 690mm (Floor Area) |
Overall Weight | ❯ 80kG |
User Interface | Digital with APR and Exposure Switch |
Mains Voltage Range | 180VAC-260VAC, 15A |
