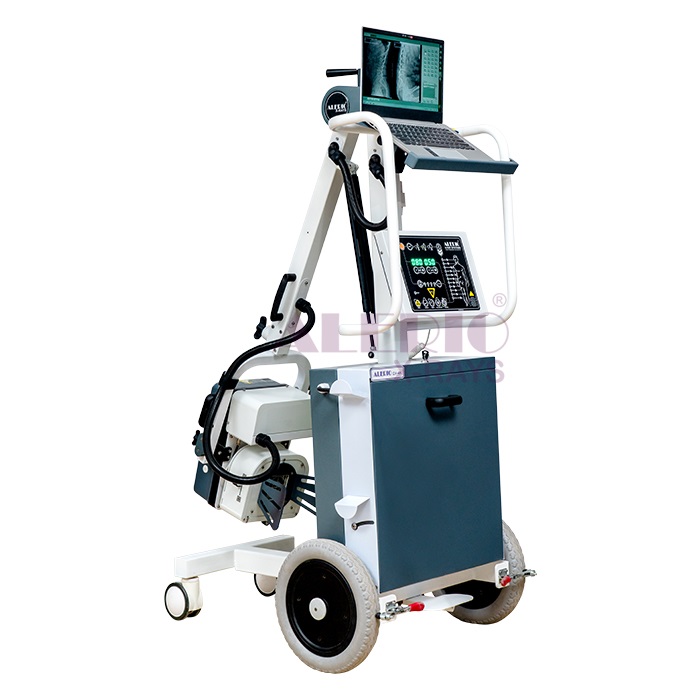

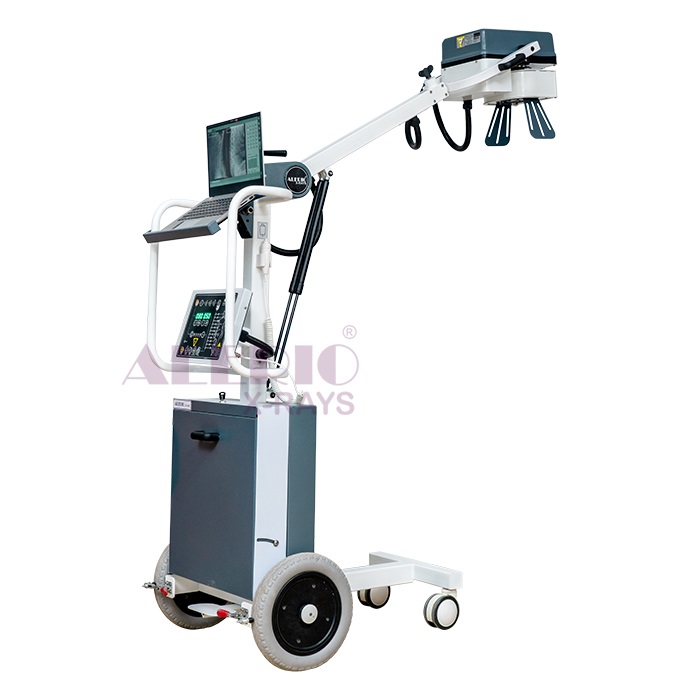

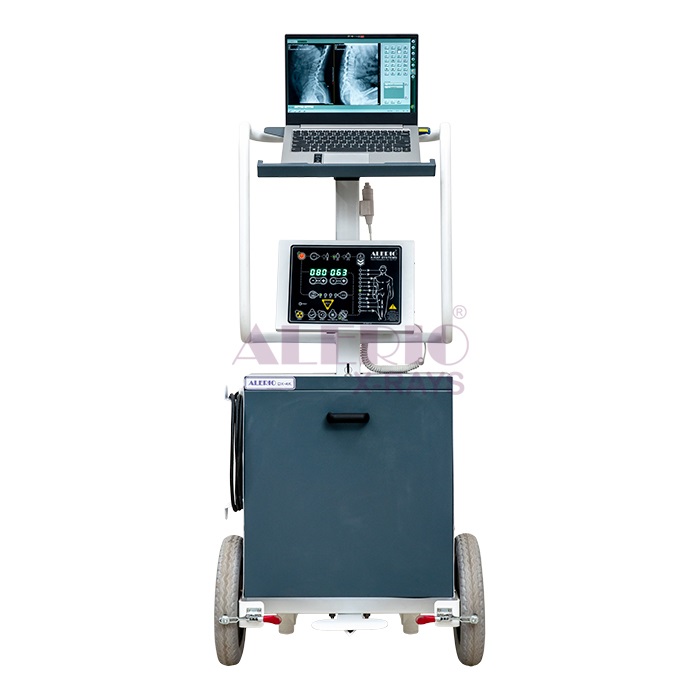

Digital Mobile X-Ray Smart 5000 DX
ALERIO Smart 5000 DX, a 120mA Mobile X-Ray Machine, is an economical, compact and highly mobile HF type X-Ray Machine for general radiographic procedures. It uses High Frequency DC and microprocessor controlled Inverter Technology with Feedback Control of x-ray. The mobile x-ray machine dose is intense and consistent. Enabling excellent and repeatable radiographs at lower exposure settings. The equipment can be powered from a standard power outlet and is tolerant to wide mains voltage fluctuations. The lightweight stand makes the unit highly mobile. It can be easily moved in and out of restricted space. Exposure settings can be selected from an easy to use pre-programmed control console or can be set manually. ALERIO Smart 5000 DX is made in India and comes with warranty and support. It conforms to IEC, BIS and AERB regulatory requirements.
ALERIO Smart 5000 DX, employs Wireless detector This fusion ensures quality and clear image acquisition. The detector has 14"X17" imaging area with magnetic folding handle, Full field AED.
Through expert guidance, we focus on refining your vision, enhancing operations, and unlocking new opportunities for growth. With a collaborative approach, we empower you to make confident decisions and build a sustainable, thriving business.

ALERIO Smart
Our business coaching process is designed to provide structured, yet flexible, support tailored to your specific goals. We begin with an in-depth consultation to understand your business’s current challenges.


General Specification
Output kV Range | 40KV-100kV in steps of 1kV |
Maximum mA | 120mA maximum |
MAS Range | 0.3-250mAs |
Peak Power | 5 kW |
Timer Range | 0.01s-5.0s |
Mains Voltage | 180 V-260 V AC |
Focal Spot | 1.8mm IEC Stationary Anode |
Weight | ❯ 85 kG all inclusive |
Technology | HF Integrated X-Ray |
Controls | Soft Touch Keys/ Remote Exposure |
