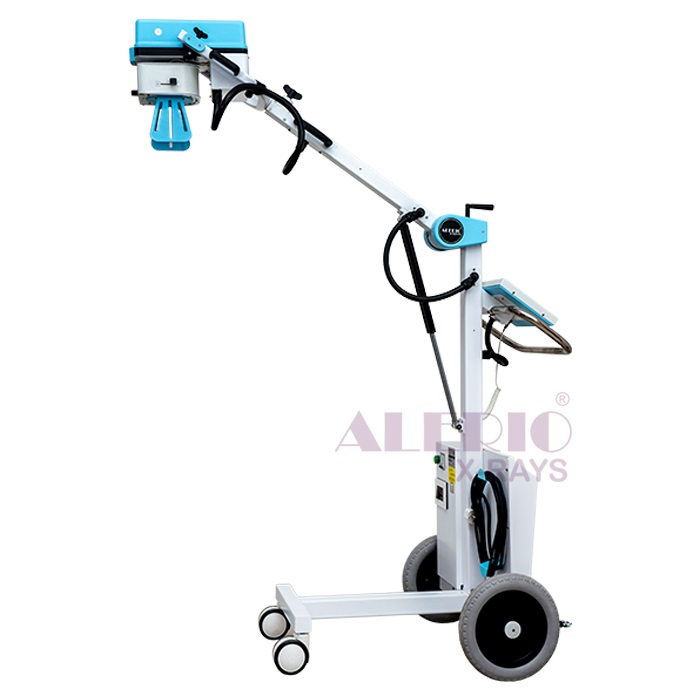

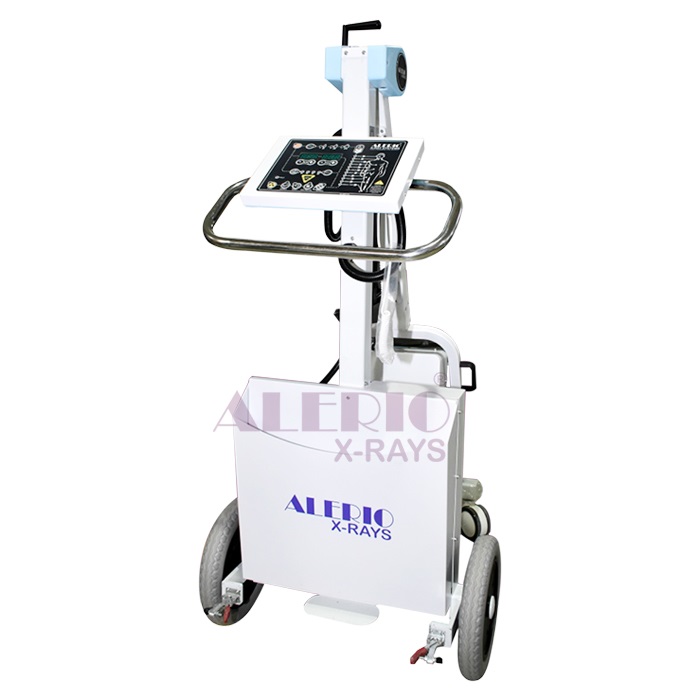

5kW Mobile X-Ray Smart 5000

ALERIO Smart 5000 is a compact yet powerful Mobile X-Ray Machine for general radiographic procedures. It uses advanced High Frequency DC Output X-Ray generation technology. The overall size and weight of the equipment are low, making it ideal for mobile applications. The DC output enables good images at a lower exposure setting. The equipment can be powered from a standard power outlet. It has an in-built stabiliser to take care of voltage variations.

ALERIO Smart 5000 is made in India and comes with a warranty and support. It is designed to conform to IEC requirements on safety and performance. The unit is BIS and AERB regulatory certified and manufactured as per ISO standards.

Typical Usage Enviroinment
  • Clinics, Laboratories & Hospitals
  • ER & Patient Bedside X-Ray
  • Remote Location & Home Visits
  • Secondary to Fixed X-Ray

Through expert guidance, we focus on refining your vision, enhancing operations, and unlocking new opportunities for growth. With a collaborative approach, we empower you to make confident decisions and build a sustainable, thriving business.

smart-5000-1

ALERIO Smart

Our business coaching process is designed to provide structured, yet flexible, support tailored to your specific goals. We begin with an in-depth consultation to understand your business’s current challenges.

alerio_5000
alerio_5000

General Specification

Model Alerio Smart 5000SX
Generator Type High Frequency DC
Output kV 40kV-100kV in steps of 1kV
Output mA 120mA maximum
Output Power 5 kW
MAS Range 0.3-250mAs
Exposure Time 0.01s - 5.0s
Focal Spot 1.8mm IEC Stationary Anode
Leakage Radiation 1mGy in one hour / (50mR/hr)
Collimator Manual collimator with LED bulb
Dimension Footprint 850mm x 690mm (Floor Area)
Overall Weight 80kG
User Interface Digital with APR and Exposure Switch
Main Voltage Range 180VAC - 260VAC, 15A
