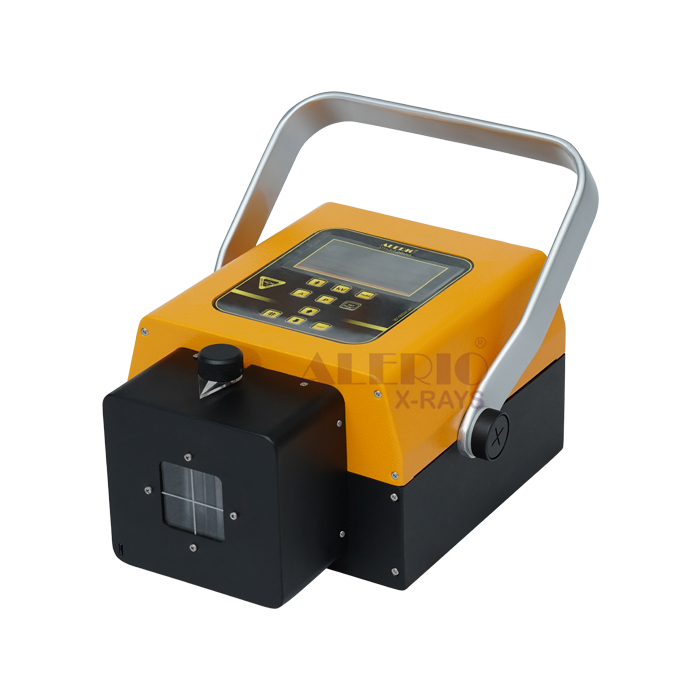

2.8kW Portable X-Ray Smart 2800

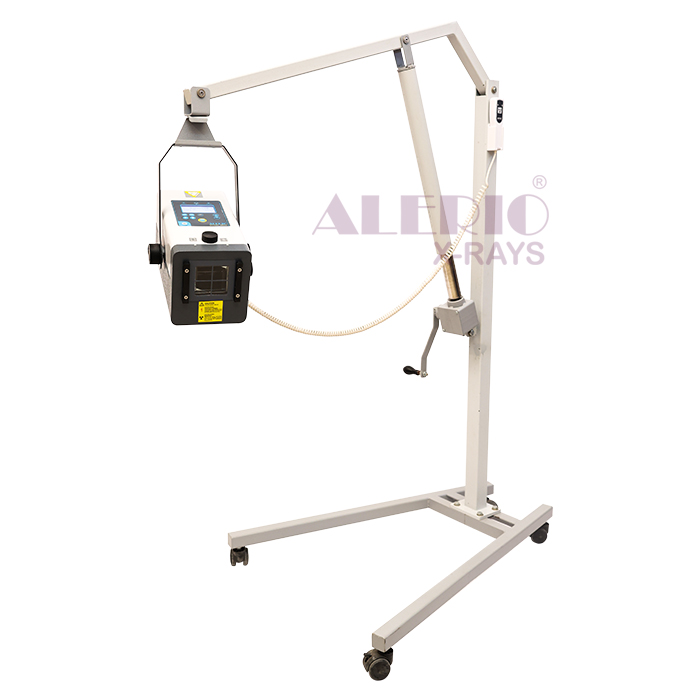

ALERIO Smart 2800 is compact portable / mobile x-ray system. It can operate both from the mains or from an optional battery pack. Weighing less than 12kg. This compact X-ray unit is suitable for varied applications such as medical camps, mobile diagnostic vehicles, remote locations, small clinics, bed side x-ray etc. It can be configured to be a simple mobile digital x-ray system when mounted to the mobile stand and a digital detector. The x-ray generator employs digital controlled high frequency inverter technology and can pump out 2.8kW of peak power at any kV. The graphical user interface is intuitive and contains pre-programmed exposure settings. The exposure is possible using a wireless remote

ALERIO Smart 2800 is made in India. It is designed, developed and manufactured inhouse, keeping simplicity, versatility, and efficiency in mind. ALERIO Smart 2800 is cost-effective in terms of initial investment and service maintenance. This X-ray unit comes with a 2-year product warranty along with lifetime service support in India.

Safety Features
  • Wide Mains Voltage Tolerance
  • Low Leakage Radiation
  • Active Over-Load Protection
  • Self-Diagnosis Protection
  • Digital Close Loop Control
  • Regulatory approved

Through expert guidance, we focus on refining your vision, enhancing operations, and unlocking new opportunities for growth. With a collaborative approach, we empower you to make confident decisions and build a sustainable, thriving business.

smart-2800-1

ALERIO Smart

Our business coaching process is designed to provide structured, yet flexible, support tailored to your specific goals. We begin with an in-depth consultation to understand your business’s current challenges.

alerio_1600
alerio_1600

General Specification

kV Range 40kV-90kV
max mA 70mA
max mAs 100mAs
Peak Power 2.8kW
Exposure Time Range 0.01s-2.0s
Mains Power Voltage 180-260V AC
Focal Spot 1.2mm IEC Stationary Anode
Weight >12KG
Technology High Frequency 100kHz or more.
Type Portable / Mobile X-ray
